Installation And Connection

This section describes how to install the appliance hardware and connect it to controlled devices.

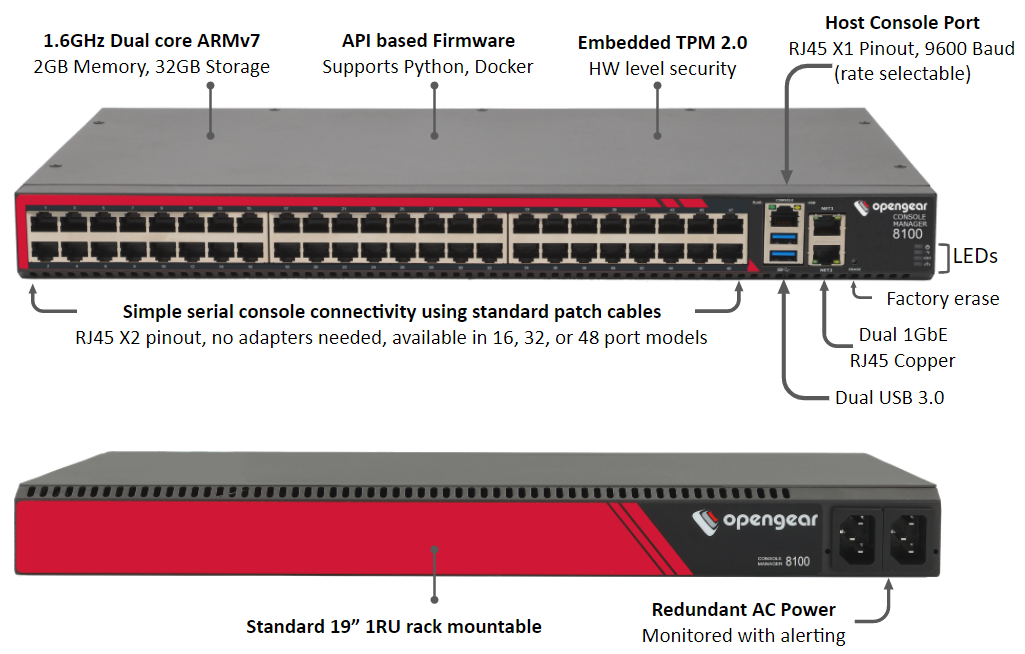

CM8100 Features:

CM8100-10G Features:

The following features apply to the CM8100-10G model:

• Static IP on Net 3.

• Pin out switching by software selectable pinout.

• Two additional 10G SFP+ fiber interfaces.

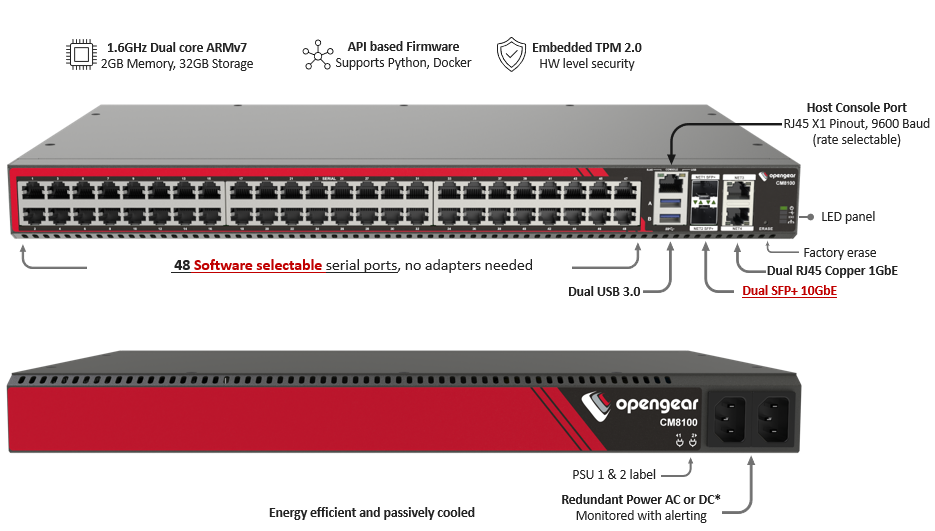

CM8148-10G

CM8196-10G
